LTC3736 - DUAL 2-PHASE, NO RSENS

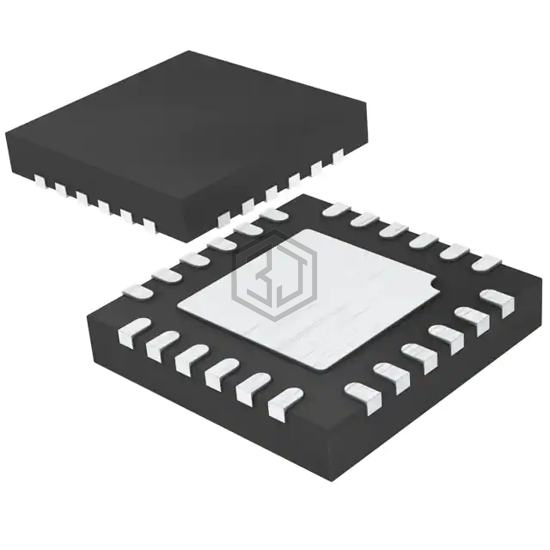

LTC3736EUF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Linear Technology. LTC3736 - DUAL 2-PHASE, NO RSENS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.75V ~ 9.8V, package / case 24-WFQFN Exposed Pad.
In Stock: 861
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 9.8V |
| Frequency - Switching | 300kHz ~ 750kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
LTC3736EUF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS5120DBTR | Texas Instruments | IC REG CTRLR BUCK 30TSSOP | 94% | View |
| S-8521E15MC-BLAT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 83% | View |
| S-8521F40MC-BPZT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 83% | View |
| MAX1957EUB+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 10UMAX | 83% | View |
| RT8108BGS | Richtek USA Inc. | IC REG CTRLR BUCK PWM SOP-8 | 78% | View |
| ISL8105IBZ-T | Renesas Electronics America Inc | IC REG CTRLR BUCK 8SOIC | 75% | View |
Submit your RFQ for LTC3736EUF and get a quote within 24 hours.
