LTC1155 - DUAL HIGH SIDE MICROPO

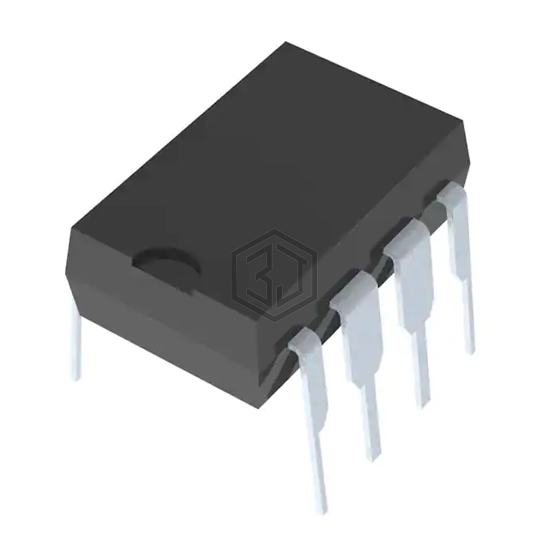

LTC1155CN8#PBF is a PMIC - Gate Drivers manufactured by Linear Technology. LTC1155 - DUAL HIGH SIDE MICROPO. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 18V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 164
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 50mA, 50mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 450µs, 26µs |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
LTC1155CN8#PBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2304PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 68% | View |
| IR2304 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 68% | View |
| IR2301 | Infineon Technologies | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 61% | View |
| IR2106PBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8DIP | 53% | View |
| IR21064 | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 14DIP | 53% | View |
| IR21074 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DIP | 53% | View |
Submit your RFQ for LTC1155CN8#PBF and get a quote within 24 hours.
