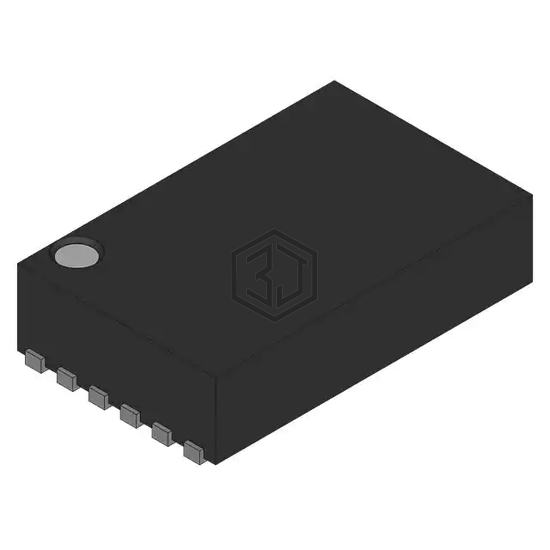

LT3066 - LINEAR REGULATOR WITH P
LT3066EDE-5#PBF is a PMIC - Voltage Regulators - Linear manufactured by Linear Technology. LT3066 - LINEAR REGULATOR WITH P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 12-WFDFN Exposed Pad, current - supply (max) 25 mA.
In Stock: 1,274
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.51V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 125 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x3) |
LT3066EDE-5#PBF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3066EDE-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 12DFN | 88% | View |
| LT3066EMSE-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 12MSOP | 88% | View |
| LT3065EMSE-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 12MSOP | 87% | View |
| LT3065HMSE-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 12MSOP | 87% | View |
| LT3065IDD-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 10DFN | 87% | View |
| LT3065HDD-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 10DFN | 87% | View |
Submit your RFQ for LT3066EDE-5#PBF and get a quote within 24 hours.
