Linear Integrated Systems, Inc.
LOW NOISE, LOW DRIFT, MONOLITHIC

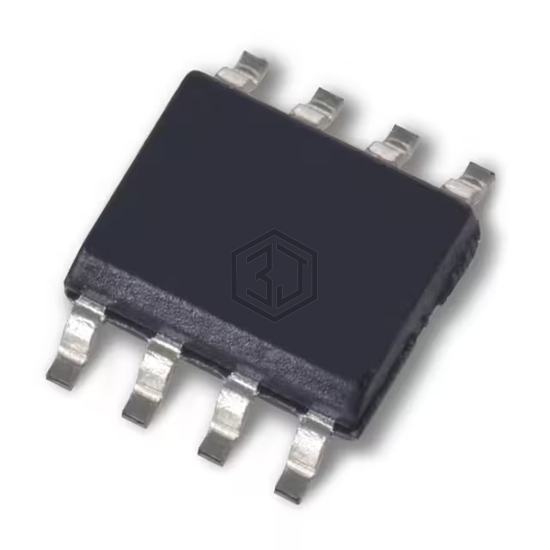

SST405 SOIC 8L is a Transistors - JFETs manufactured by Linear Integrated Systems, Inc.. LOW NOISE, LOW DRIFT, MONOLITHIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 300 mW.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 50 V |
| Drain to Source Voltage (Vdss) | 50 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 500 µA @ 10 V |
| Current Drain (Id) - Max | - |
| Voltage - Cutoff (VGS off) @ Id | 500 mV @ 1 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 8pF @ 15V |
| Resistance - RDS(On) | - |
| Power - Max | 300 mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Submit your RFQ for SST405 SOIC 8L and get a quote within 24 hours.
