Linear Integrated Systems, Inc.
HIGH SPEED N-CHANNEL LATERAL DMO

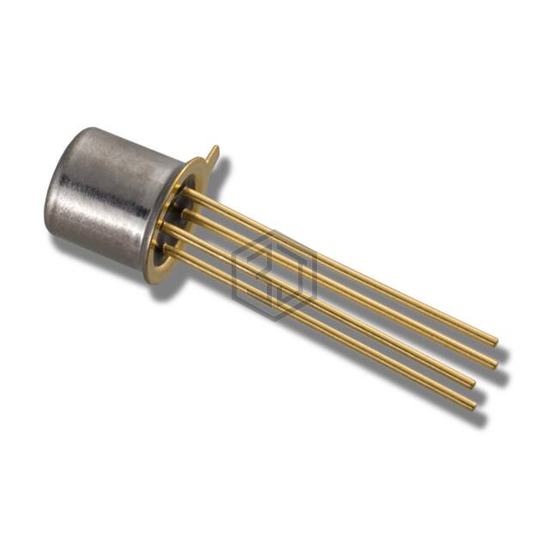

SD215DE TO-72 4L is a Transistors - FETs, MOSFETs - Single manufactured by Linear Integrated Systems, Inc.. HIGH SPEED N-CHANNEL LATERAL DMO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case TO-206AF, TO-72-4 Metal Can.
In Stock: 909
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 50mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 25V |
| Rds On (Max) @ Id, Vgs | 45Ohm @ 1mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 1µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | +30V, -25V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 300mW (Ta) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-72-4 |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
Submit your RFQ for SD215DE TO-72 4L and get a quote within 24 hours.
