Linear Integrated Systems, Inc.
LOW NOISE & CAPACITANCE, HIGH IN

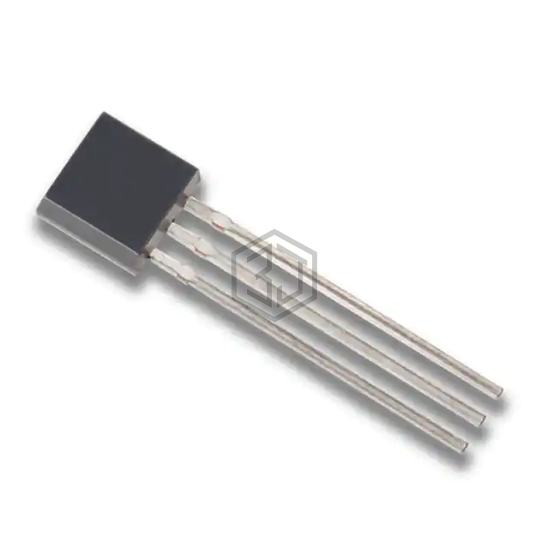

LSK170B TO-92 3L is a Transistors - JFETs manufactured by Linear Integrated Systems, Inc.. LOW NOISE & CAPACITANCE, HIGH IN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), power - max 400 mW.
In Stock: 330
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 6 mA @ 10 V |
| Current Drain (Id) - Max | 10 mA |
| Voltage - Cutoff (VGS off) @ Id | 200 mV @ 1 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 20pF @ 15V |
| Resistance - RDS(On) | - |
| Power - Max | 400 mW |
| Operating Temperature | -55°C ~ 135°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92 |
Submit your RFQ for LSK170B TO-92 3L and get a quote within 24 hours.
