Linear Integrated Systems, Inc.
LOW NOISE, SINGLE, N-CHANNEL JFE

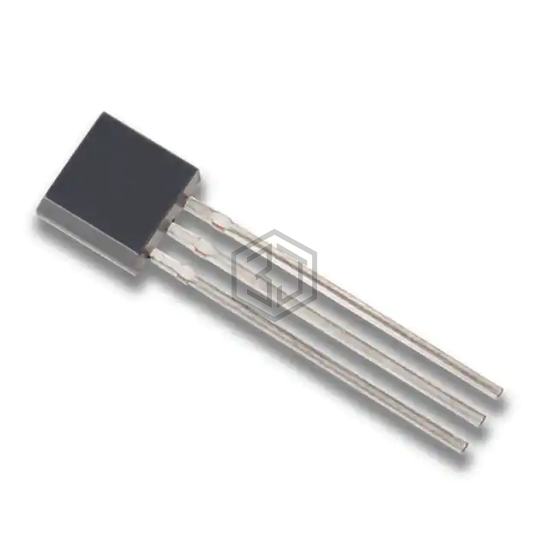

J201 TO-92 3L is a Transistors - JFETs manufactured by Linear Integrated Systems, Inc.. LOW NOISE, SINGLE, N-CHANNEL JFE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), power - max 350 mW.
In Stock: 355
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 200 µA @ 15 V |
| Current Drain (Id) - Max | 10 mA |
| Voltage - Cutoff (VGS off) @ Id | 300 mV @ 10 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 4.5pF @ 15V |
| Resistance - RDS(On) | - |
| Power - Max | 350 mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92 |
Submit your RFQ for J201 TO-92 3L and get a quote within 24 hours.
