Linear Integrated Systems, Inc.
P-CHANNEL, SINGLE ENHANCEMENT MO

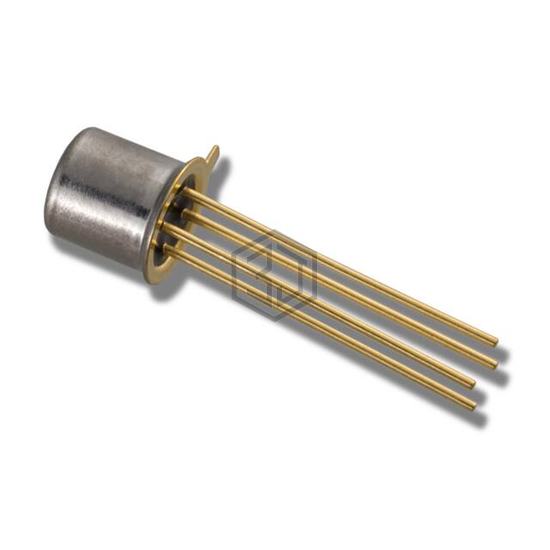

3N164 TO-72 4L is a Transistors - FETs, MOSFETs - Single manufactured by Linear Integrated Systems, Inc.. P-CHANNEL, SINGLE ENHANCEMENT MO. Key specifications: mounting type Through Hole, package / case TO-206AF, TO-72-4 Metal Can.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 50mA |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 300Ohm @ 100µA, 20V |
| Vgs(th) (Max) @ Id | 5V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | -6.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 3500 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 375mW |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-72-4 |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
Submit your RFQ for 3N164 TO-72 4L and get a quote within 24 hours.
