Linear Integrated Systems, Inc.
N-CHANNEL ENHANCEMENT MODE MOSFE

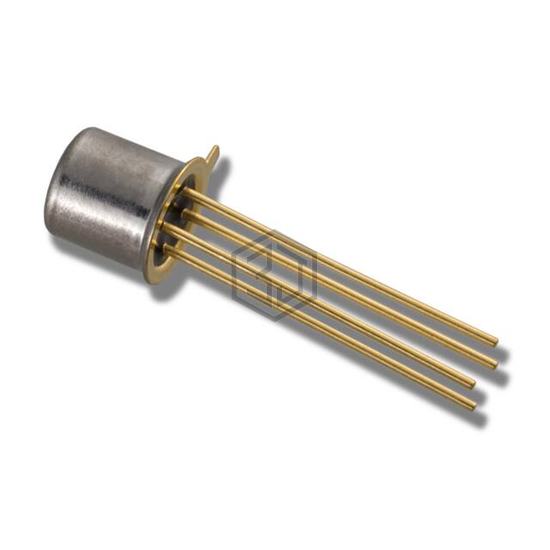

2N4351 TO-72 4L is a Transistors - FETs, MOSFETs - Single manufactured by Linear Integrated Systems, Inc.. N-CHANNEL ENHANCEMENT MODE MOSFE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-206AF, TO-72-4 Metal Can.
In Stock: 999
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 20mA |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 300Ohm @ 100µA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 350mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-72-4 |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
Submit your RFQ for 2N4351 TO-72 4L and get a quote within 24 hours.
