STEPPER MOTOR

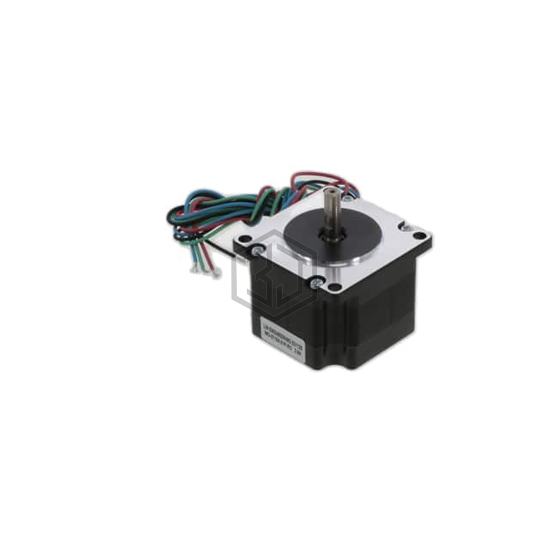

WO-5718X-01P-RO is a Stepper Motors manufactured by Lin Engineering. STEPPER MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 2.8 A, size / dimension Square - 2.252" x 2.252" (57.20mm x 57.20mm).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 100 / 706 |
| Size / Dimension | Square - 2.252" x 2.252" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.236" (6.00mm) |
| Length - Shaft and Bearing | 0.827" (21.00mm) |
| Mounting Hole Spacing | 1.850" (47.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 0.7 Ohms |
| Features | Flatted Shaft |
Submit your RFQ for WO-5718X-01P-RO and get a quote within 24 hours.
