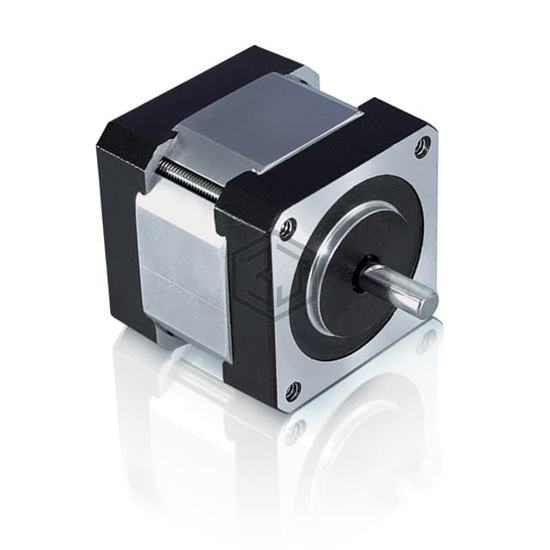

STEPPER MOTOR
WO-417-11-03 is a Stepper Motors manufactured by Lin Engineering. STEPPER MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 1.2 A, size / dimension Square - 1.650" L x 1.650" W (41.90mm x 41.90mm).
In Stock: 7,236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 1.2 A |
| Steps per Revolution | 400 |
| Step Angle | 0.9° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 16 / 113 |
| Size / Dimension | Square - 1.650" L x 1.650" W (41.90mm x 41.90mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 3 Ohms |
| Features | Round Shaft |
Submit your RFQ for WO-417-11-03 and get a quote within 24 hours.
