STEPPER MOTOR

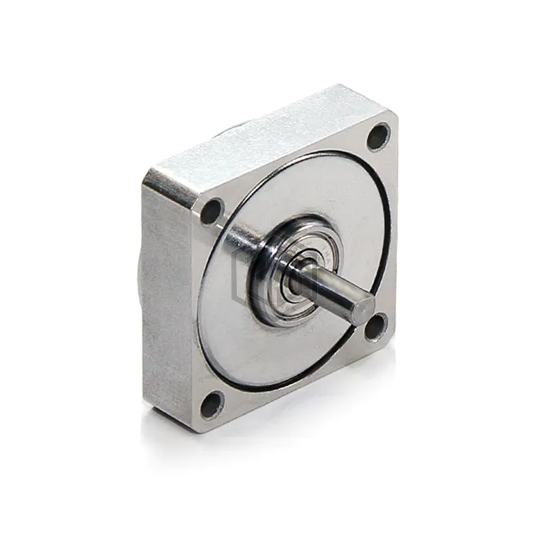

WO-416-07-05 is a Stepper Motors manufactured by Lin Engineering. STEPPER MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 600 mA, size / dimension Square - 1.539" L x 1.539" W (39.10mm x 39.10mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 600 mA |
| Steps per Revolution | 400 |
| Step Angle | 0.9° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 8.4 / 59.31 |
| Size / Dimension | Square - 1.539" L x 1.539" W (39.10mm x 39.10mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.709" (18.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 5.4 Ohms |
| Features | Round Shaft |
Submit your RFQ for WO-416-07-05 and get a quote within 24 hours.
