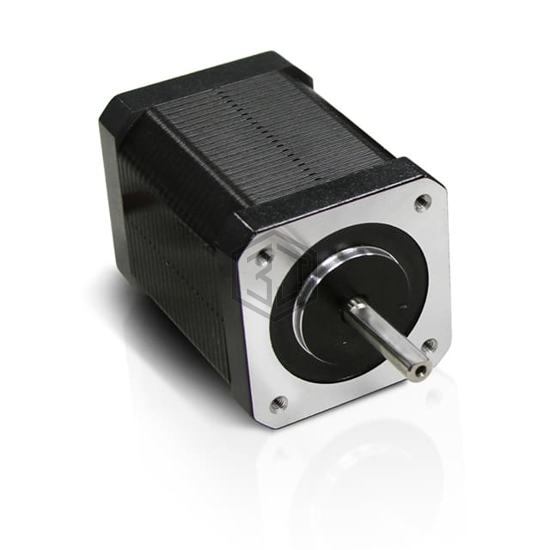

STEPPER MOTOR
WO-4118S-04S is a Stepper Motors manufactured by Lin Engineering. STEPPER MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 670 mA, size / dimension Square - 1.669" x 1.669" (42.40mm x 42.40mm).
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 670 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 42 / 296.59 |
| Size / Dimension | Square - 1.669" x 1.669" (42.40mm x 42.40mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 9.9 Ohms |
| Features | Flatted Shaft |
