STEPPER MOTOR

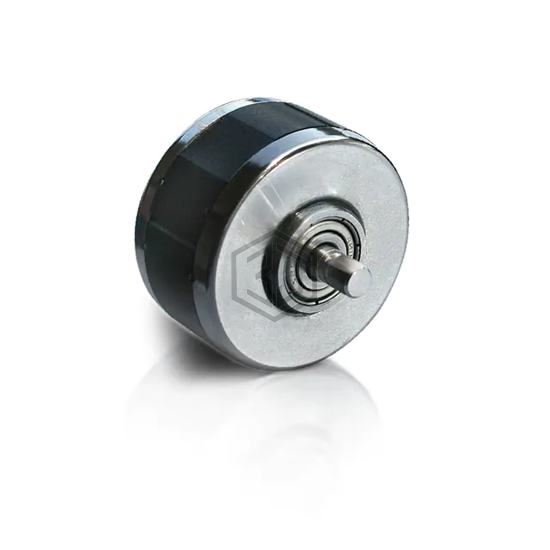

WO-3809Z-14 is a Stepper Motors manufactured by Lin Engineering. STEPPER MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 250 mA, size / dimension Round - 1.429" Dia (36.30mm).
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 250 mA |
| Steps per Revolution | 400 |
| Step Angle | 0.9° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | - |
| Size / Dimension | Round - 1.429" Dia (36.30mm) |
| NEMA Frame Size | 14 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | - |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 15.4 Ohms |
| Features | Round Shaft |
Submit your RFQ for WO-3809Z-14 and get a quote within 24 hours.
