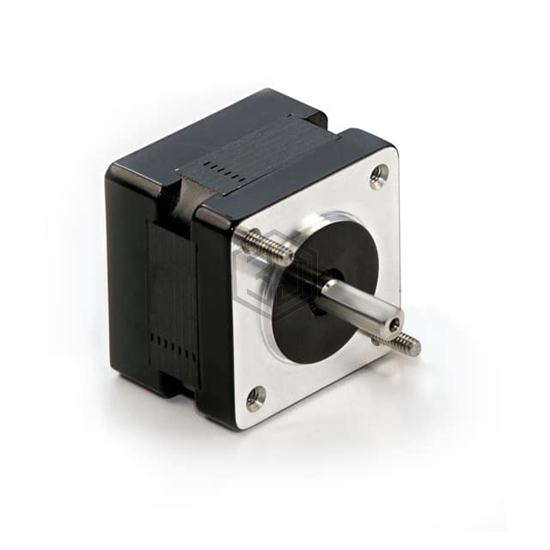

STEPPER MOTOR
WO-3518X-08 is a Stepper Motors manufactured by Lin Engineering. STEPPER MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 350 mA, size / dimension Square - 1.390" x 1.390" (35.30mm x 35.30mm).
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 350 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 7.5 / 52.96 |
| Size / Dimension | Square - 1.390" x 1.390" (35.30mm x 35.30mm) |
| NEMA Frame Size | 14 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 1.023" (26.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 8.5 Ohms |
| Features | Round Shaft |
Submit your RFQ for WO-3518X-08 and get a quote within 24 hours.
