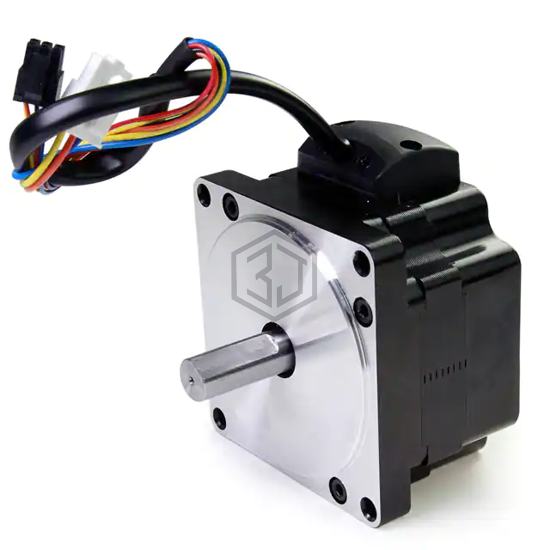

BLDC MOTOR
BL34E21-02-RO is a Motors - AC, DC manufactured by Lin Engineering. BLDC MOTOR. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 48VDC, size / dimension Square - 3.150" x 3.150" (80.00mm x 80.00mm), termination style Wire Leads with Connector.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Standard |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 48VDC |
| RPM | 4000 RPM |
| Torque - Rated (oz-in / mNm) | 34 / 240 |
| Power - Rated | 100W |
| Encoder Type | - |
| Size / Dimension | Square - 3.150" x 3.150" (80.00mm x 80.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 67.97 / 480 |
| Operating Temperature | -20°C ~ 50°C |
Submit your RFQ for BL34E21-02-RO and get a quote within 24 hours.
