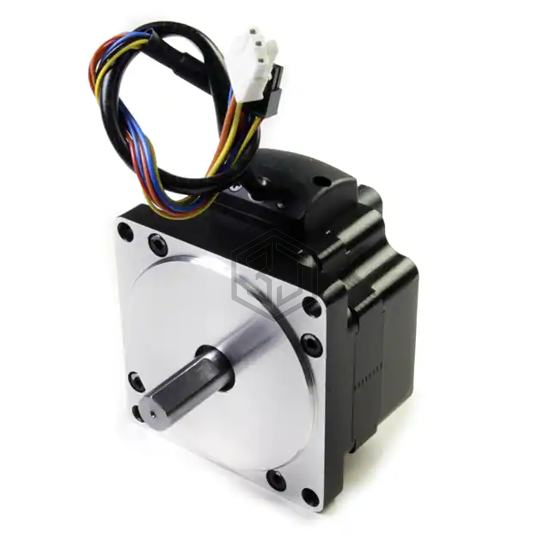

BLDC MOTOR WITH ENCODER
BL34E21-01D-07RO is a Motors - AC, DC manufactured by Lin Engineering. BLDC MOTOR WITH ENCODER. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, size / dimension Square - 3.146" x 3.146" (79.92mm x 79.92mm), termination style Wire Leads with Connector.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Standard |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 4000 RPM |
| Torque - Rated (oz-in / mNm) | 33.99 / 240 |
| Power - Rated | 100W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 3.146" x 3.146" (79.92mm x 79.92mm) |
| Diameter - Shaft | 0.472" (12.00mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.739" (69.58mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 68 / 480 |
| Operating Temperature | -20°C ~ 50°C |
Submit your RFQ for BL34E21-01D-07RO and get a quote within 24 hours.
