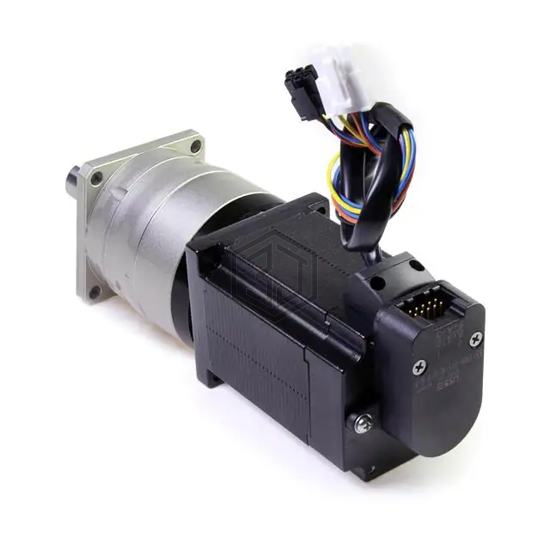

NEMA 23 - 2 STACK BLDC+20:1+ENC
BL23E33-02-HP20-ED1000 is a Motors - AC, DC manufactured by Lin Engineering. NEMA 23 - 2 STACK BLDC+20:1+ENC. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 48VDC, size / dimension Rectangular - 2.56" x 8.31" (65mm x 211.1mm), termination style Connector.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | BLDC |
| Function | Gearmotor |
| Motor Type | - |
| Voltage - Rated | 48VDC |
| RPM | 200 RPM |
| Torque - Rated (oz-in / mNm) | 697.6 / 4,925 |
| Power - Rated | 120W |
| Encoder Type | Incremental |
| Size / Dimension | Rectangular - 2.56" x 8.31" (65mm x 211.1mm) |
| Diameter - Shaft | 0.630" (16.00mm) |
| Length - Shaft and Bearing | 1.16" (29.50mm) |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Termination Style | Connector |
| Features | Shaft Key Included |
| Gear Reduction Ratio | 20 |
| Torque - Max Momentary (oz-in / mNm) | 1,395.2 / 9,850 |
| Operating Temperature | -20°C ~ 50°C |
Submit your RFQ for BL23E33-02-HP20-ED1000 and get a quote within 24 hours.
