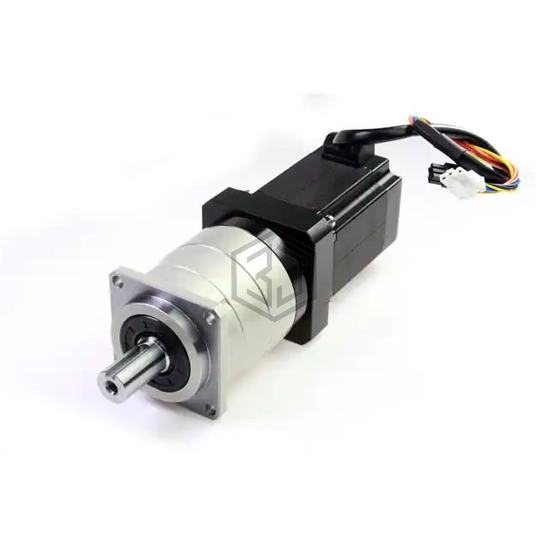

NEMA 23 - 1 STACK BLDC + 5:1
BL23E22-02-HP05 is a Motors - AC, DC manufactured by Lin Engineering. NEMA 23 - 1 STACK BLDC + 5:1. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 48VDC, size / dimension Square - 2.21" x 2.21" (56.20mm x 56.20mm), termination style Connector.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | BLDC |
| Function | Gearmotor |
| Motor Type | - |
| Voltage - Rated | 48VDC |
| RPM | 800 RPM |
| Torque - Rated (oz-in / mNm) | 92.8/ 655 |
| Power - Rated | 60W |
| Encoder Type | - |
| Size / Dimension | Square - 2.21" x 2.21" (56.20mm x 56.20mm) |
| Diameter - Shaft | 0.630" (16.00mm) |
| Length - Shaft and Bearing | 1.16" (29.50mm) |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Termination Style | Connector |
| Features | Shaft Key Included |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 185.6 / 1,310 |
| Operating Temperature | -20°C ~ 50°C |
Submit your RFQ for BL23E22-02-HP05 and get a quote within 24 hours.
