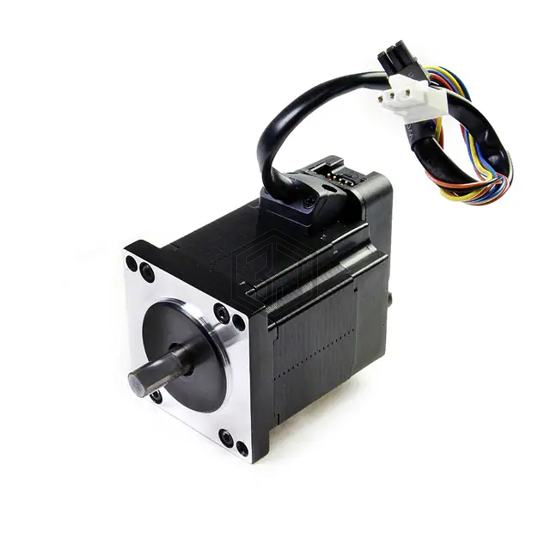

BLDC MOTOR WITH ENCODER
BL23E22-01D-06RO is a Motors - AC, DC manufactured by Lin Engineering. BLDC MOTOR WITH ENCODER. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, size / dimension Square - 2.213" x 2.213" (56.20mm x 56.20mm), termination style Wire Leads with Connector.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Standard |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 4000 RPM |
| Torque - Rated (oz-in / mNm) | 20.53 / 144.97 |
| Power - Rated | 60W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 2.213" x 2.213" (56.20mm x 56.20mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.827" (21.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 41.1 / 289.9 |
| Operating Temperature | -20°C ~ 50°C |
Submit your RFQ for BL23E22-01D-06RO and get a quote within 24 hours.
