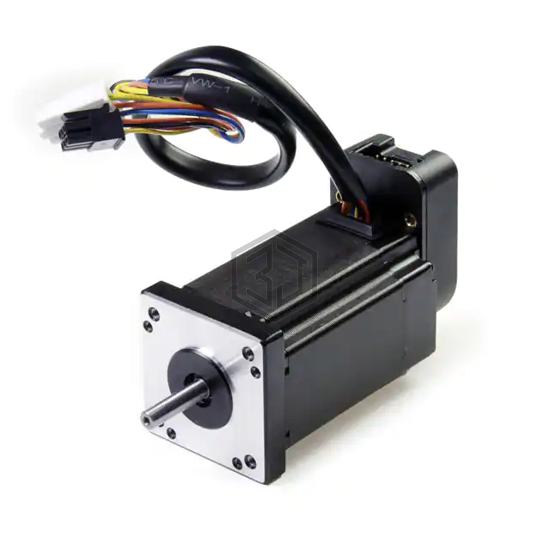

BLDC MOTOR WITH ENCODER
BL17E40-01D-05RO is a Motors - AC, DC manufactured by Lin Engineering. BLDC MOTOR WITH ENCODER. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, size / dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm), termination style Wire Leads with Connector.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Standard |
| Motor Type | Brushless (BLDC) |
| Voltage - Rated | 24VDC |
| RPM | 4000 RPM |
| Torque - Rated (oz-in / mNm) | 30.45 / 215.02 |
| Power - Rated | 90W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 60.9 / 430 |
| Operating Temperature | -20°C ~ 50°C |
