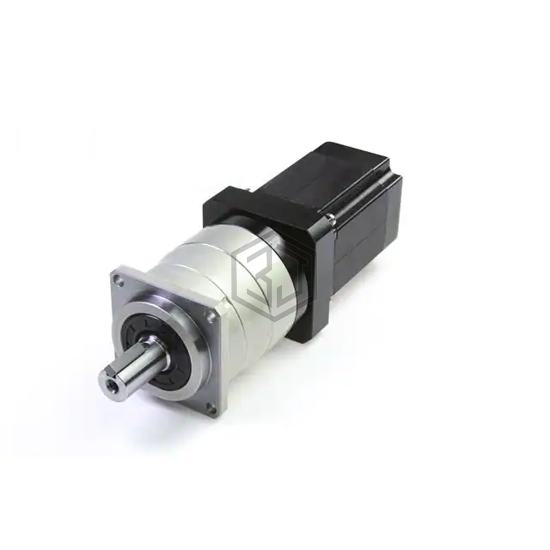

NEMA 23 - 1 STACK STEPPER + 20:1
5718X-15P-HP20 is a Stepper Motors manufactured by Lin Engineering. NEMA 23 - 1 STACK STEPPER + 20:1. Key specifications: operating temperature -20°C ~ 50°C, voltage - rated 24VDC, size / dimension Square - 2.25" x 2.25" (57.20mm x 57.20mm), termination style Wire Leads.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 8000 |
| Step Angle | - |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 2,000 / 14,120 |
| Size / Dimension | Square - 2.25" x 2.25" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.63" (16mm) |
| Length - Shaft and Bearing | 1.16" (29.5mm) |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 300 mOhms |
| Features | Shaft Key Included |
Submit your RFQ for 5718X-15P-HP20 and get a quote within 24 hours.
