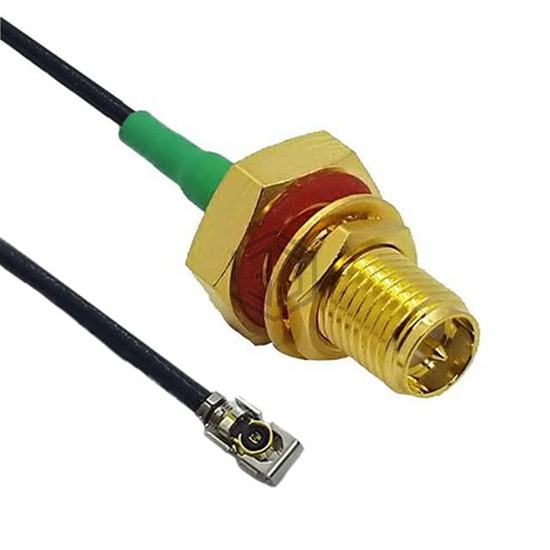

I-PEX MHF4L LK - RP-SMA IP67 10"
CB1.37-IPX4LLK-SARF3OGTX9-10IN is a Coaxial Cables (RF) manufactured by Lighthorse Technologies, Inc. I-PEX MHF4L LK - RP-SMA IP67 10". Key specifications: operating temperature -40°C ~ 90°C, color Black, ingress protection IP67/IP68 - Dust Tight, Waterproof, cable type 1.37mm OD Coaxial Cable.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Style | IPEX MHF4L LK to RP-SMA |
| 1st Connector | RP-SMA Jack |
| 1st Contact Gender | Male |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector | IPEX MHF4L LK (Locking) Plug, Right Angle |
| 2nd Contact Gender | Female |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Mounting Feature | - |
| Length | 10.000" (254.00mm) |
| Cable Type | 1.37mm OD Coaxial Cable |
| Cable Impedance | 50 Ohms |
| Connector Impedance | - |
| Overall Impedance | 50 Ohms |
| Frequency - Max | 6 GHz |
| Color | Black |
| Features | Shielded |
| Operating Temperature | -40°C ~ 90°C |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
Submit your RFQ for CB1.37-IPX4LLK-SARF3OGTX9-10IN and get a quote within 24 hours.
