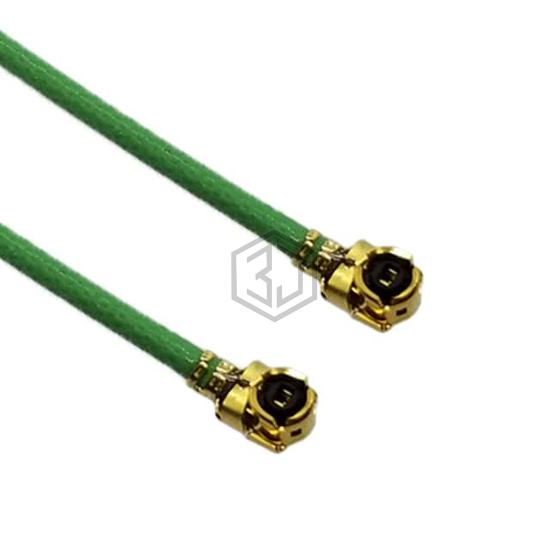

I-PEX MHF1 - I-PEX MHF1 9"
CB1.32D-2IPX-9IN is a Coaxial Cables (RF) manufactured by Lighthorse Technologies, Inc. I-PEX MHF1 - I-PEX MHF1 9". Key specifications: operating temperature -40°C ~ 90°C, color Green, cable type 1.32mm OD Coaxial Cable DS, frequency - max 6 GHz.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Style | IPEX MHF1 to IPEX MHF1 |
| 1st Connector | IPEX MHF1 Plug, Right Angle |
| 1st Contact Gender | Female |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Mounting Feature | - |
| 2nd Connector | IPEX MHF1 Plug, Right Angle |
| 2nd Contact Gender | Female |
| 2nd Connector Mounting Type | - |
| 2nd Connector Mounting Feature | - |
| Length | 9.000" (228.60mm) |
| Cable Type | 1.32mm OD Coaxial Cable DS |
| Cable Impedance | 50 Ohms |
| Connector Impedance | - |
| Overall Impedance | 50 Ohms |
| Frequency - Max | 6 GHz |
| Color | Green |
| Features | Double Shielded |
| Operating Temperature | -40°C ~ 90°C |
| Ingress Protection | - |
Submit your RFQ for CB1.32D-2IPX-9IN and get a quote within 24 hours.
