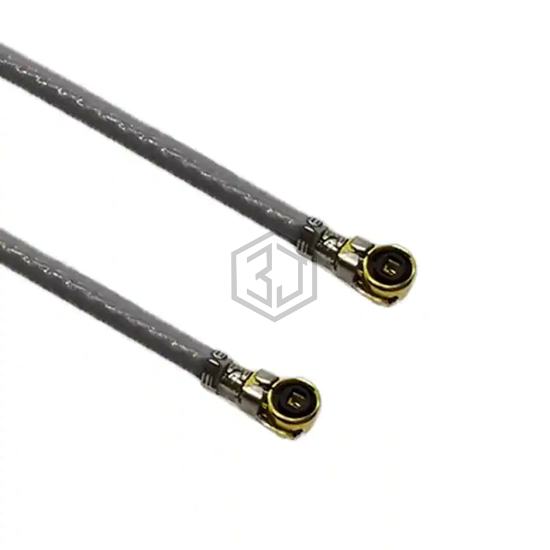

I-PEX MHF4L - I-PEX MHF4L 1"
CB1.17LL-2IPX4L-1IN is a Coaxial Cables (RF) manufactured by Lighthorse Technologies, Inc. I-PEX MHF4L - I-PEX MHF4L 1". Key specifications: operating temperature -40°C ~ 90°C, color Gray, cable type 1.17mm OD LL Coaxial Cable, frequency - max 6 GHz.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Style | IPEX MHF4L to IPEX MHF4L |
| 1st Connector | IPEX MHF4L Plug, Right Angle |
| 1st Contact Gender | Female |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Mounting Feature | - |
| 2nd Connector | IPEX MHF4L Plug, Right Angle |
| 2nd Contact Gender | Female |
| 2nd Connector Mounting Type | - |
| 2nd Connector Mounting Feature | - |
| Length | 1.000" (25.40mm) |
| Cable Type | 1.17mm OD LL Coaxial Cable |
| Cable Impedance | 50 Ohms |
| Connector Impedance | - |
| Overall Impedance | 50 Ohms |
| Frequency - Max | 6 GHz |
| Color | Gray |
| Features | Shielded |
| Operating Temperature | -40°C ~ 90°C |
| Ingress Protection | - |
Submit your RFQ for CB1.17LL-2IPX4L-1IN and get a quote within 24 hours.
