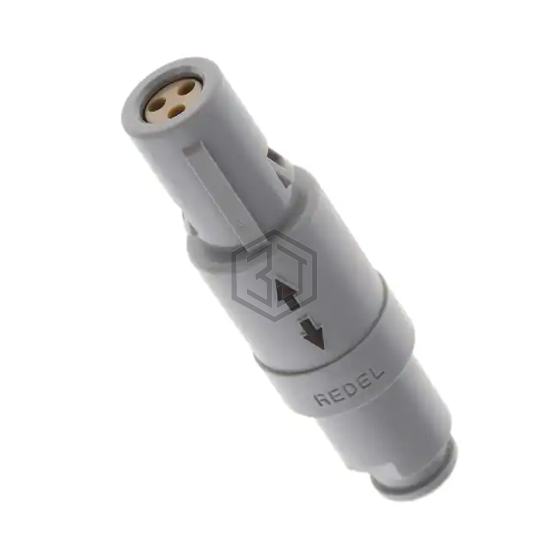

CONN PLUG FMALE 3P GOLD SLDR CUP
PAH.N0.3GL.LC65GZ is a Circular Connectors manufactured by LEMO. CONN PLUG FMALE 3P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -50°C ~ 150°C, voltage rating 250VAC, color Gray.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 3 (Power) |
| Shell Size - Insert | N03 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull, Detent Lock |
| Orientation | H |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 9A |
| Voltage Rating | 250VAC |
| Cable Opening | 0.209" ~ 0.256" (5.30mm ~ 6.50mm) |
| Operating Temperature | -50°C ~ 150°C |
Submit your RFQ for PAH.N0.3GL.LC65GZ and get a quote within 24 hours.
