LB90 KEYG 6C CHR 7.2MM D

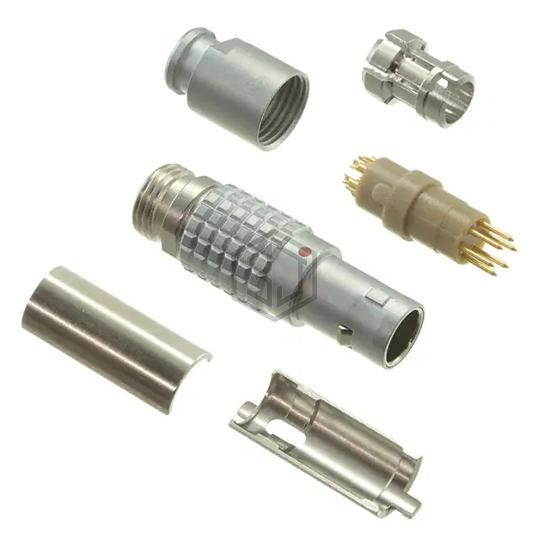

FHG.1B.306.CYCD72 is a Circular Connectors manufactured by LEMO. LB90 KEYG 6C CHR 7.2MM D. Key specifications: mounting type Free Hanging (In-Line), Right Angle, operating temperature -55°C ~ 250°C, color Silver, current rating (amps) 7A.
In Stock: 356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 6 |
| Shell Size - Insert | 306 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - |
| Termination | Crimp |
| Fastening Type | Push-Pull, Detent Lock |
| Orientation | G |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 7A |
| Voltage Rating | - |
| Cable Opening | 0.244" ~ 0.283" (6.20mm ~ 7.20mm) |
| Operating Temperature | -55°C ~ 250°C |
Submit your RFQ for FHG.1B.306.CYCD72 and get a quote within 24 hours.
