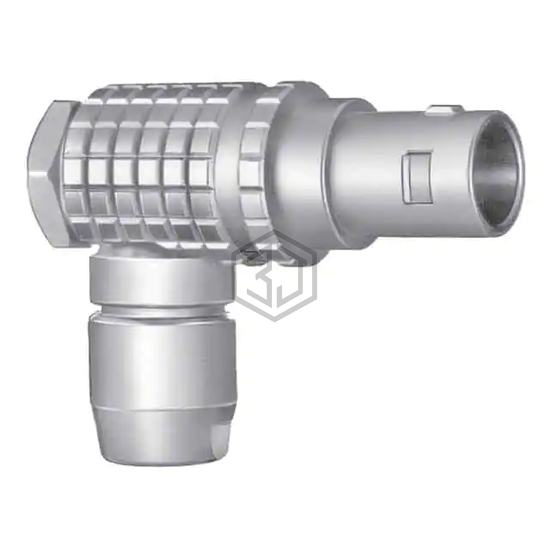

CONN PLUG MALE 2P GOLD SLDR CUP
FHG.1B.302.CLAD52 is a Circular Connectors manufactured by LEMO. CONN PLUG MALE 2P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), Right Angle, operating temperature -55°C ~ 250°C, color Silver, current rating (amps) 15A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 2 |
| Shell Size - Insert | 302 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 15A |
| Voltage Rating | - |
| Cable Opening | 0.165" ~ 0.205" (4.20mm ~ 5.20mm) |
| Operating Temperature | -55°C ~ 250°C |
Submit your RFQ for FHG.1B.302.CLAD52 and get a quote within 24 hours.
