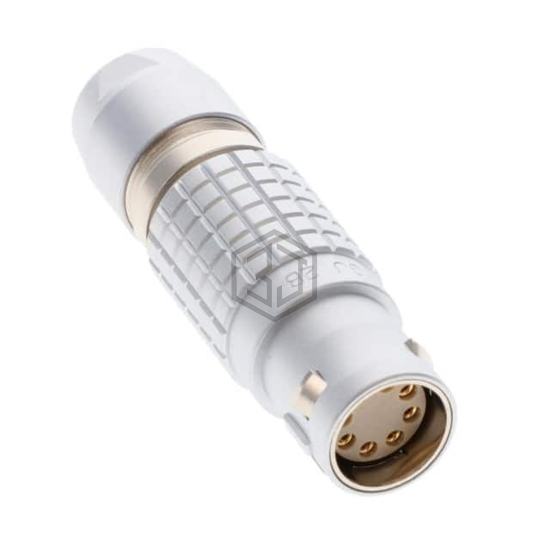

CONN PLUG FMALE 8P GOLD SLDR CUP
FGJ.2B.308.CLLD72 is a Circular Connectors manufactured by LEMO. CONN PLUG FMALE 8P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -55°C ~ 250°C, color Silver, current rating (amps) 10A.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 8 |
| Shell Size - Insert | 308 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | J |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 10A |
| Voltage Rating | - |
| Cable Opening | 0.244" ~ 0.283" (6.20mm ~ 7.20mm) |
| Operating Temperature | -55°C ~ 250°C |
Submit your RFQ for FGJ.2B.308.CLLD72 and get a quote within 24 hours.
