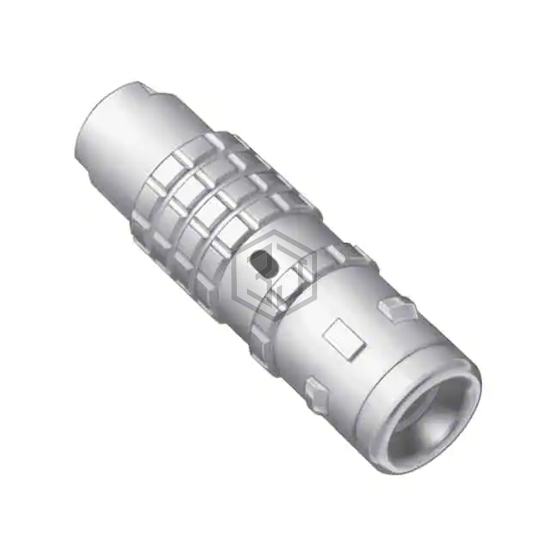

CONN PLUG MALE 8P GOLD SLDR CUP
FGG.2K.308.CLAC65Z is a Circular Connectors manufactured by LEMO. CONN PLUG MALE 8P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -55°C ~ 200°C, color Silver, current rating (amps) 10A.
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 8 |
| Shell Size - Insert | 308 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 10A |
| Voltage Rating | - |
| Cable Opening | 0.240" ~ 0.256" (6.10mm ~ 6.50mm) |
| Operating Temperature | -55°C ~ 200°C |
Submit your RFQ for FGG.2K.308.CLAC65Z and get a quote within 24 hours.
