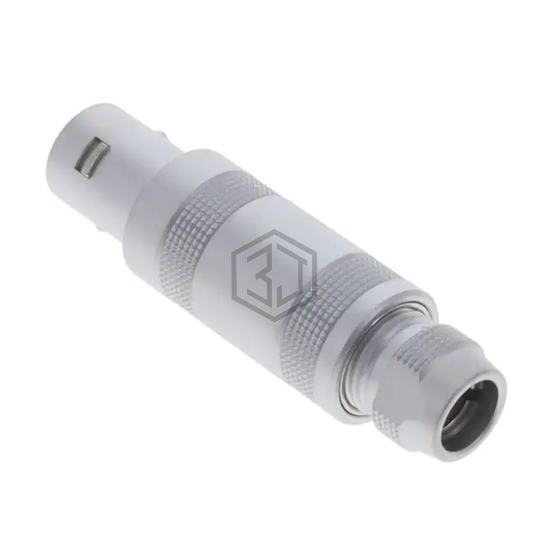

CONN CIRC PLUG 6P GOLD SLDR CUP
FFA.1S.306.CLAC57 is a Circular Connectors manufactured by LEMO. CONN CIRC PLUG 6P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -55°C ~ 250°C, color Silver, current rating (amps) 7A.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets and Male Pins |
| Number of Positions | 6 |
| Shell Size - Insert | 306 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 7A |
| Voltage Rating | - |
| Cable Opening | 0.205" ~ 0.224" (5.20mm ~ 5.70mm) |
| Operating Temperature | -55°C ~ 250°C |
Submit your RFQ for FFA.1S.306.CLAC57 and get a quote within 24 hours.
