PLUG 5 POS FREE HANGING

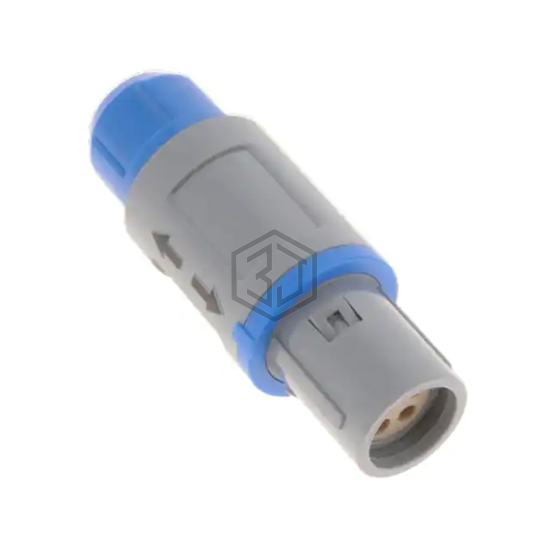

CAB.H05.GLA.C72A is a Circular Connectors manufactured by LEMO. PLUG 5 POS FREE HANGING. Key specifications: mounting type Free Hanging (In-Line), operating temperature -50°C ~ 150°C, voltage rating 250V, color Gray.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 5 |
| Shell Size - Insert | H-5 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull, Detent Lock |
| Orientation | B |
| Primary Material | - |
| Shell Material | Polysulfone (PSU) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 8A |
| Voltage Rating | 250V |
| Cable Opening | 0.209" ~ 0.283" (5.30mm ~ 7.20mm) |
| Operating Temperature | -50°C ~ 150°C |
Submit your RFQ for CAB.H05.GLA.C72A and get a quote within 24 hours.
