Laird-Signal Integrity Products

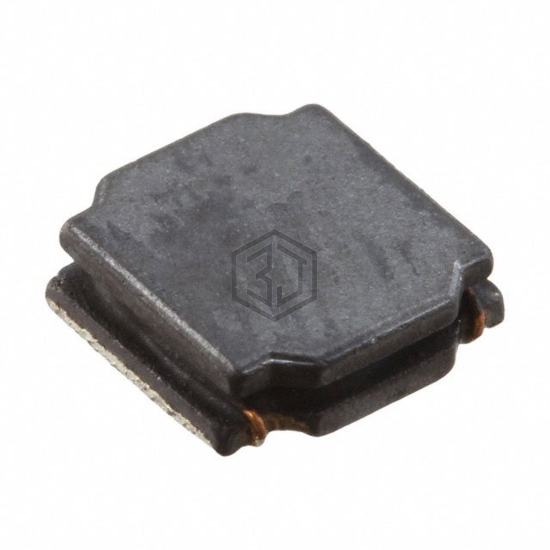

FIXED IND 1UH 3.5A 20 MOHM SMD
TYS60201R0N-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 1UH 3.5A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 4.15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for TYS60201R0N-10 and get a quote within 24 hours.
