Laird-Signal Integrity Products

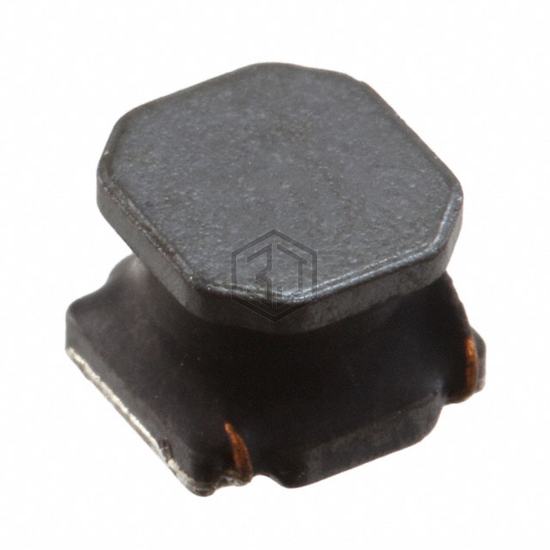

FIXED IND 4.7UH 3A 30 MOHM SMD
TYS50404R7N-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 4.7UH 3A 30 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3 A.
In Stock: 29,795
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 28MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
Submit your RFQ for TYS50404R7N-10 and get a quote within 24 hours.
