Laird-Signal Integrity Products
FIXED IND 22UH 1.1A 226 MOHM SMD

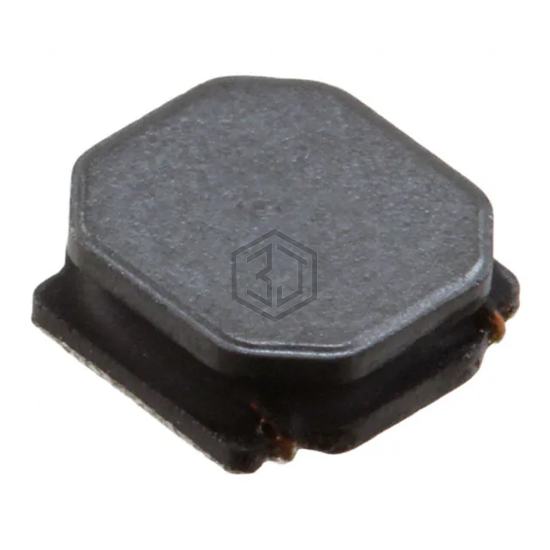

TYS5020220M-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 22UH 1.1A 226 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2020 (5050 Metric), current rating (amps) 1.1 A.
In Stock: 275,935
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 1.15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 226mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 14MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for TYS5020220M-10 and get a quote within 24 hours.
