Laird-Signal Integrity Products
FIXED IND 1UH 1.93A 83 MOHM SMD

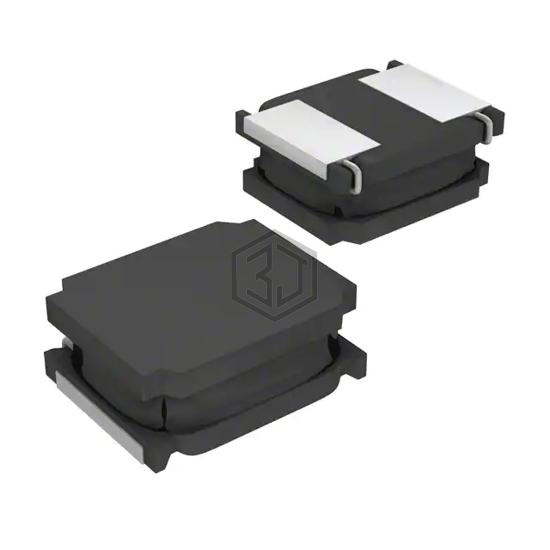

TYS252012L1R0N-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 1UH 1.93A 83 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 1.93 A.
In Stock: 380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.93 A |
| Current - Saturation (Isat) | 2.59A |
| Shielding | Shielded |
| DC Resistance (DCR) | 83mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 110MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for TYS252012L1R0N-10 and get a quote within 24 hours.
