Laird-Signal Integrity Products
TX 1 COIL 1 LAYER 12.5UH

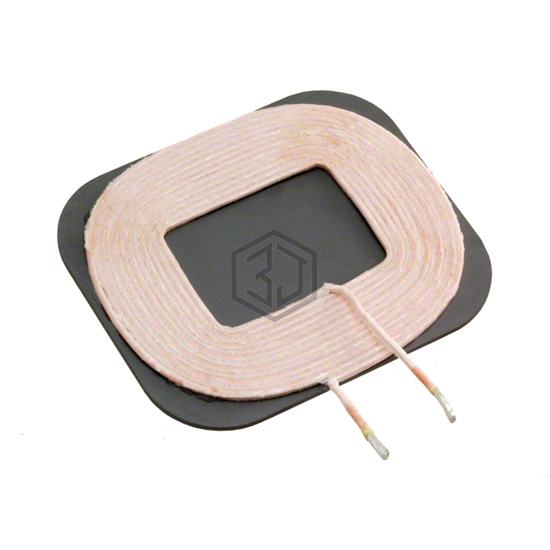

SWC5547AK120-500 is a Wireless Charging Coils manufactured by Laird-Signal Integrity Products. TX 1 COIL 1 LAYER 12.5UH. Key specifications: operating temperature -40°C ~ 125°C, size / dimension 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm), tolerance ±10%.
In Stock: 4,078
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 12.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 65mOhm Max |
| Q @ Freq | 90 @ 100kHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -40°C ~ 125°C |
| Size / Dimension | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
Submit your RFQ for SWC5547AK120-500 and get a quote within 24 hours.
