Laird-Signal Integrity Products
RX 1 COIL 1 LAYER 12.5UH

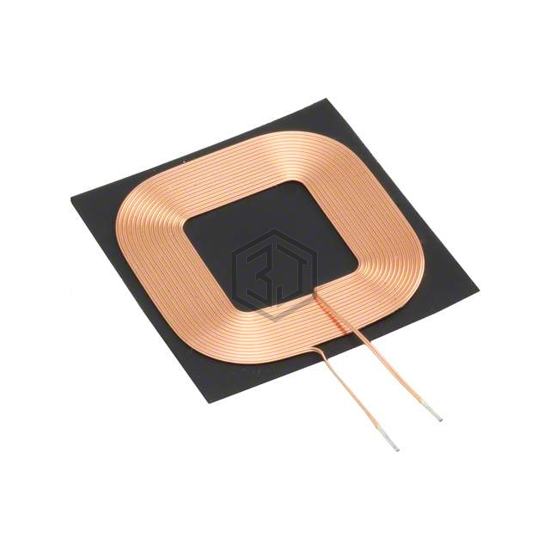

SWC4242KB120-100 is a Wireless Charging Coils manufactured by Laird-Signal Integrity Products. RX 1 COIL 1 LAYER 12.5UH. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm), tolerance ±10%.
In Stock: 8,335
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Inductance | 12.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 240mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -40°C ~ 85°C |
| Size / Dimension | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) |
Submit your RFQ for SWC4242KB120-100 and get a quote within 24 hours.
