Laird-Signal Integrity Products

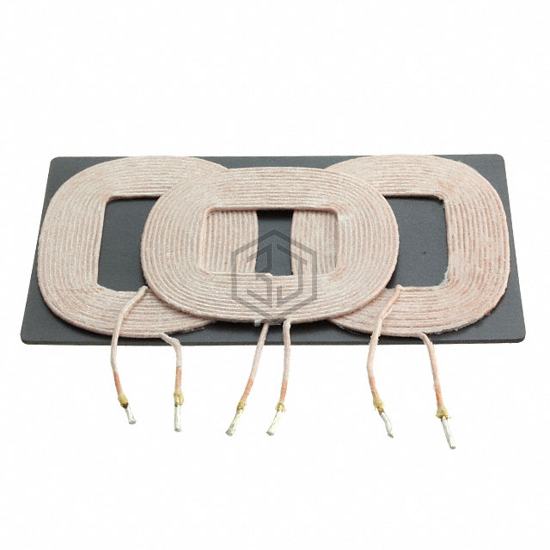

TRANSMITTER 3 COIL 1 LAYER
SWC10056AA120-500 is a Wireless Charging Coils manufactured by Laird-Signal Integrity Products. TRANSMITTER 3 COIL 1 LAYER. Key specifications: operating temperature -40°C ~ 125°C, size / dimension 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm), tolerance ±10%.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 3 Coil, 1 Layer |
| Inductance | 12.5µH, 11.5µH, 12.5µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 65mOhm Max |
| Q @ Freq | 90 @ 100kHz |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -40°C ~ 125°C |
| Size / Dimension | 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) |
Submit your RFQ for SWC10056AA120-500 and get a quote within 24 hours.
