Laird-Signal Integrity Products
FIXED IND 1.5UH 2.4A 99MOHM SMD

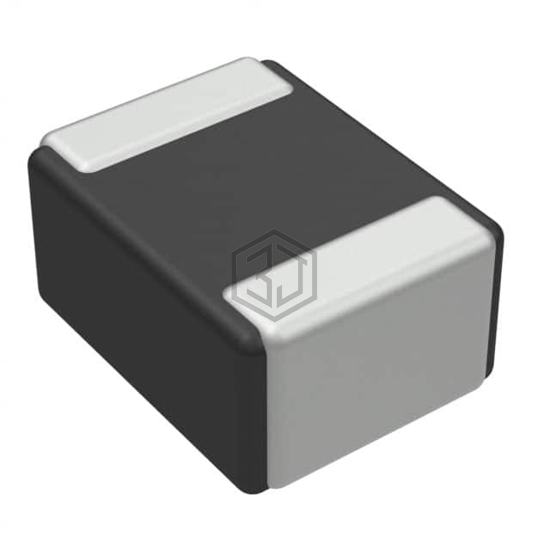

MGV201610S1R5M-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 1.5UH 2.4A 99MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 2.4 A.
In Stock: 14,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.4 A |
| Current - Saturation (Isat) | 3.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 99mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for MGV201610S1R5M-10 and get a quote within 24 hours.
