Laird-Signal Integrity Products
FIXED IND 300NH 8A 10 MOHM SMD

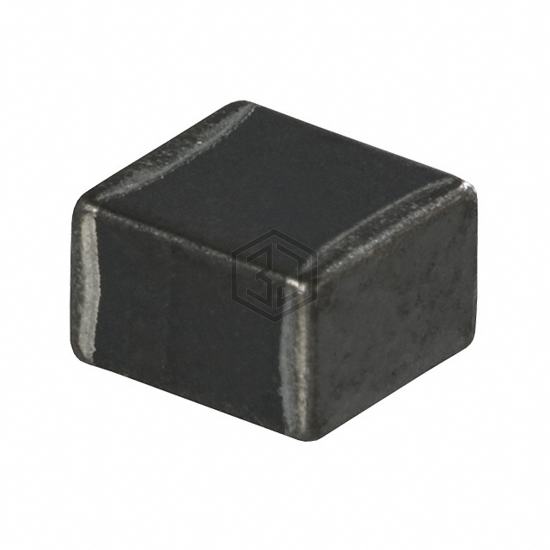

DI2220V301R-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 300NH 8A 10 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2220 (5650 Metric), current rating (amps) 8 A.
In Stock: 266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 300 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5650 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Height - Seated (Max) | 0.152" (3.86mm) |
Submit your RFQ for DI2220V301R-10 and get a quote within 24 hours.
