Laird-Signal Integrity Products
CMC 4A 2LN 700 OHM SMD

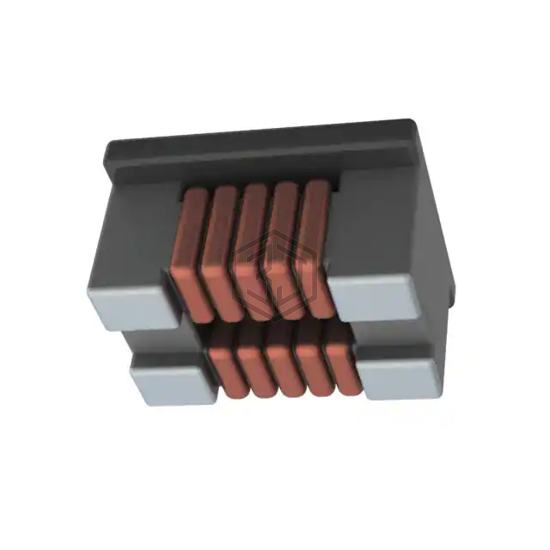

CM7060P701R-10 is a Common Mode Chokes manufactured by Laird-Signal Integrity Products. CMC 4A 2LN 700 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 80V, package / case Horizontal, 4 PC Pad.
In Stock: 5,682
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 700 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 15mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Height (Max) | 0.150" (3.80mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for CM7060P701R-10 and get a quote within 24 hours.
