Laird-Signal Integrity Products
CMC 20A 4LN 170 OHM TH

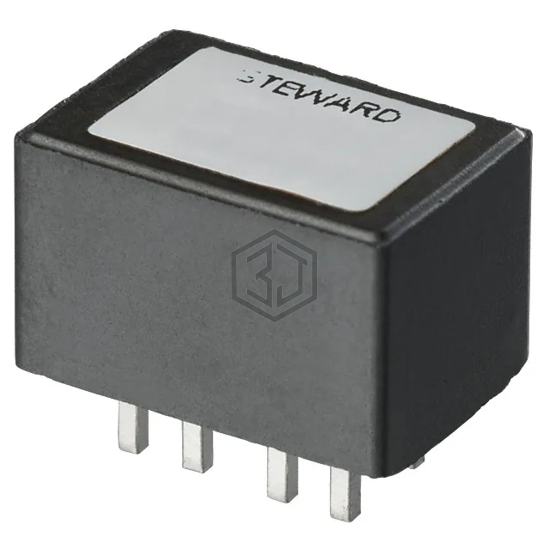

CM5740Z171B-10 is a Common Mode Chokes manufactured by Laird-Signal Integrity Products. CMC 20A 4LN 170 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Vertical, 8 PC Pin, size / dimension 0.570" L x 0.395" W (14.48mm x 10.03mm).
In Stock: 975
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 4 |
| Impedance @ Frequency | 170 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 20A |
| DC Resistance (DCR) (Max) | 1mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.570" L x 0.395" W (14.48mm x 10.03mm) |
| Height (Max) | 0.508" (12.90mm) |
| Package / Case | Vertical, 8 PC Pin |
Submit your RFQ for CM5740Z171B-10 and get a quote within 24 hours.
