Laird-Signal Integrity Products
CMC 5A 8LN 200 OHM SMD

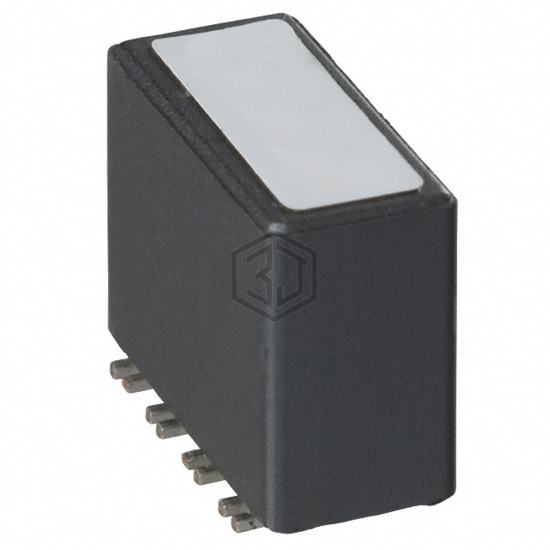

CM5022R201R-10 is a Common Mode Chokes manufactured by Laird-Signal Integrity Products. CMC 5A 8LN 200 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Vertical, 16 Flat Lead, size / dimension 0.495" L x 0.265" W (12.57mm x 6.73mm).
In Stock: 1,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 8 |
| Impedance @ Frequency | 200 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 5A |
| DC Resistance (DCR) (Max) | 20mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.495" L x 0.265" W (12.57mm x 6.73mm) |
| Height (Max) | 0.406" (10.31mm) |
| Package / Case | Vertical, 16 Flat Lead |
Submit your RFQ for CM5022R201R-10 and get a quote within 24 hours.
