Laird-Signal Integrity Products
CMC 100MA 2LN 370 OHM SMD

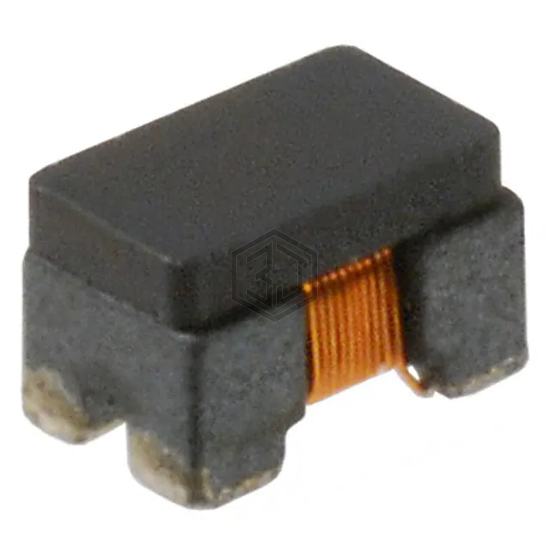

CM0805A371R-10 is a Common Mode Chokes manufactured by Laird-Signal Integrity Products. CMC 100MA 2LN 370 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Horizontal, 4 PC Pad, size / dimension 0.079" L x 0.047" W (2.00mm x 1.20mm).
In Stock: 24,545
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 370 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 500mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.047" (1.20mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for CM0805A371R-10 and get a quote within 24 hours.
