Laird-Signal Integrity Products
CMC 25UH 800MA 2LN 2KOHM SMD

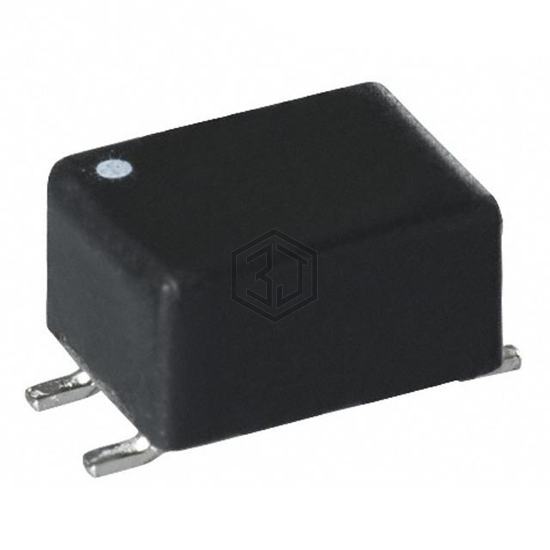

CC2824E253R-10 is a Common Mode Chokes manufactured by Laird-Signal Integrity Products. CMC 25UH 800MA 2LN 2KOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 80V, package / case Horizontal, 4 Flat Lead.
In Stock: 6,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 2 kOhms @ 100 MHz |
| Inductance @ Frequency | 25 µH @ 100 kHz |
| Current Rating (Max) | 800mA |
| DC Resistance (DCR) (Max) | 260mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | 42V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.354" L x 0.217" W (9.00mm x 5.50mm) |
| Height (Max) | 0.193" (4.90mm) |
| Package / Case | Horizontal, 4 Flat Lead |
Submit your RFQ for CC2824E253R-10 and get a quote within 24 hours.
