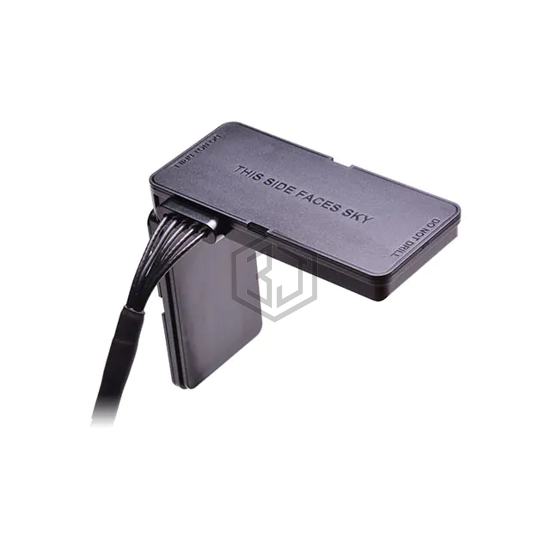

ANTENNA AUTO 4PORT
VQJ69595B-92VC1 is a RF Antennas manufactured by TE Connectivity Laird. ANTENNA AUTO 4PORT. Key specifications: mounting type Adhesive, termination SMA Male (3), RP-SMA Male, ingress protection IP67, power - max 5 W.
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz |
| Antenna Type | Module |
| Number of Bands | 8 |
| VSWR | 3.1 |
| Return Loss | - |
| Gain | 5dBi |
| Power - Max | 5 W |
| Features | Cable - 914mm, LNA |
| Termination | SMA Male (3), RP-SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.575" (14.60mm) |
| Applications | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
