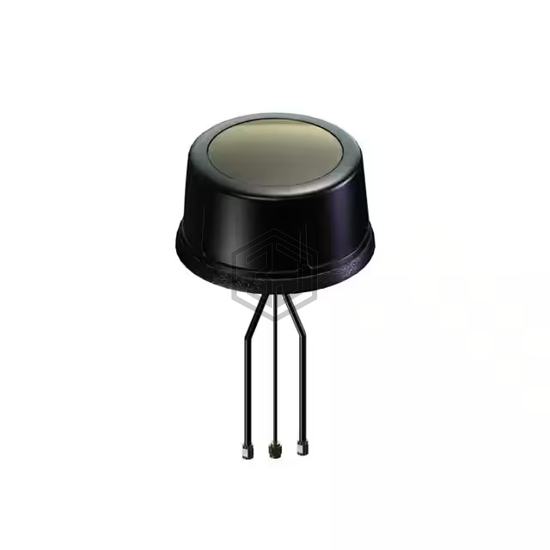

ANT 3-PORT 2X-4G, 1X-GNSS, BK
VLT69273B2NJ-518A is a RF Antennas manufactured by TE Connectivity Laird. ANT 3-PORT 2X-4G, 1X-GNSS, BK. Key specifications: mounting type Panel Mount, termination SMA Male (2), ingress protection IP67, power - max 50 W.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz |
| Antenna Type | Dome |
| Number of Bands | 11 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 3.3dBi, 2.3dBi, 2.7dBi, 28dB, 4.6dBi, 4.8dBi, 5dBi, 4.9dBi, 5.7dBi |
| Power - Max | 50 W |
| Features | Cable - 5.18m |
| Termination | SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 2.953" (75.00mm) |
| Applications | Beidou, GLONASS, GPS, LTE |
