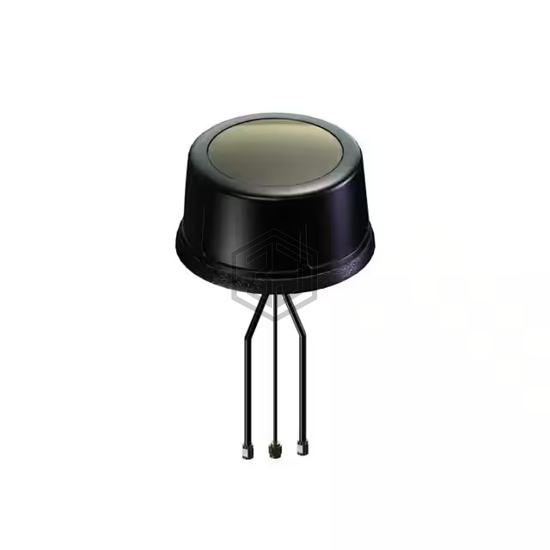

ANT 3-PORT 1X-4G, 1X-WIFI-GNSS,
VLT69273B11J-518A is a RF Antennas manufactured by TE Connectivity Laird. ANT 3-PORT 1X-4G, 1X-WIFI-GNSS,. Key specifications: mounting type Panel Mount, termination RP-SMA Male, SMA Male (2), ingress protection IP67, power - max 50 W.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.205GHz, 2.5GHz, 5.4GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz |
| Antenna Type | Dome |
| Number of Bands | 7 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 2dBi, 28dB, 4.1dBi, 4.2dBi, 4.9dBi |
| Power - Max | 50 W |
| Features | Cable - 5.18m |
| Termination | RP-SMA Male, SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 2.953" (75.00mm) |
| Applications | Beidou, GLONASS, GPS, LTE, Wi-Fi |
Submit your RFQ for VLT69273B11J-518A and get a quote within 24 hours.
