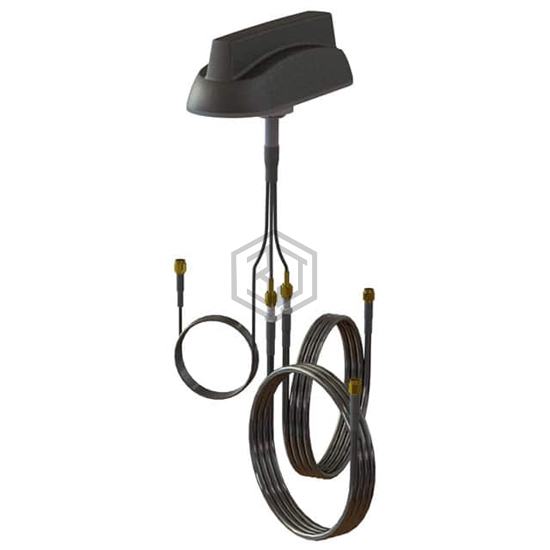

ANT LOW PROFILE 3-PORT SHARKFIN
VFT69383B11JN-518L is a RF Antennas manufactured by TE Connectivity Laird. ANT LOW PROFILE 3-PORT SHARKFIN. Key specifications: mounting type Panel Mount, termination SMA Male (2), RP-SMA, ingress protection IP67, power - max 30 W.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Dome |
| Number of Bands | 9 |
| VSWR | 2, 2.1, 2.5 |
| Return Loss | - |
| Gain | -0.3dBi, 0.6dBi, 1.6dBi, 3.4dBi, 4.5dBi, 5.6dBi, 4.3dBi, 3.4dBi, 4.6dBi |
| Power - Max | 30 W |
| Features | Cable - 4.9m, LNA |
| Termination | SMA Male (2), RP-SMA |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.890" (48.00mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
Submit your RFQ for VFT69383B11JN-518L and get a quote within 24 hours.
